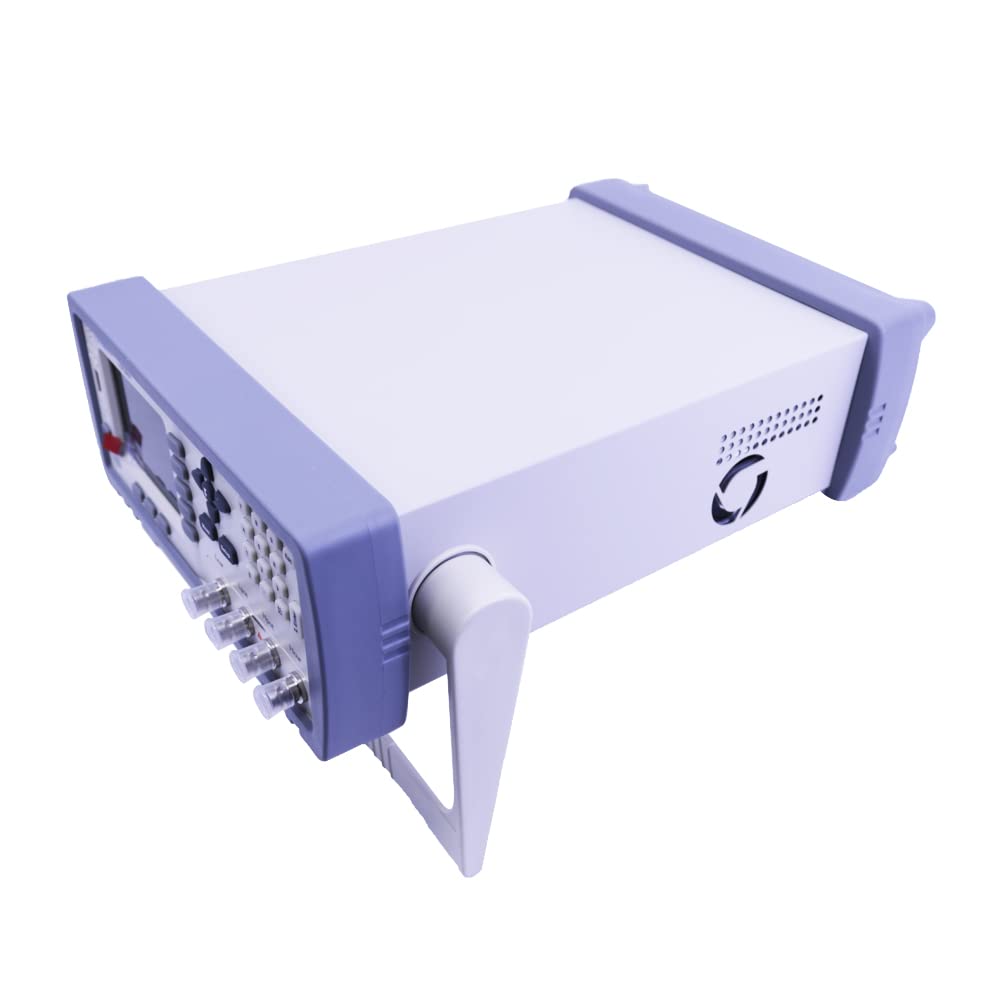

AT810A Smart LCR Meter 10Hz-20kHz (Resolution 0.001Hz) Electronic Component Analyzer

FEATURESTFT-LCD Display;Correction: OPEN and SHORT;View: ΔABS, Δ% or Sorting Result on 3rd Line;Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO;Interface: RS232C and Handler;Optional Interface: USB;Test signal monitor: Vm and Im;Avarage rate: 1~99times;Measurement Terminal: 4 terminals;Key lock function;Parameters:Test Functions:Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCRAccuracy:0.05%Measurement Frequency:10Hz~20kHz (Resolution 0.001Hz)Measurement Range:AUTO/HOLD/NOMINAL 9 RangesMeasurement Speed:30 times/s, 10 times/s, 3 times/sDisplay Range:L: 0.00001μH-9999.99HC: 0.00001pF – 9999.99μFR,X,Z: 0.00001Ω - 99.9999MΩD, 0.00001 – 9.99999Q: 0.00001 – 99999.9Δ%: -999999% - 999999%θ(deg): -179.999° -179.999°θ(rad):-3.14159 – 3.14159DCR: 0.00001Ω ~ 99.9999MΩSource Resistance:30Ω, 50Ω and 100ΩMonitor Parameter:Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%Display Reader:6 digits: 999999Equivalent Circuit:Serial and ParallelSignal Level:10.00mV~2.00V ,AC100.0μA~20.00mA ACAverage:1~256Trigger Mode:INT/HOLD/MAN/BUSTrigger Delay:0.01ms~60sComparator:OK: 10-BINS NG:1-BIN, AUX: 1-BINList Test:10 Steps (Frequency/Voltage/Current)Comparator Mode:SEQ/ABS/PERAdjustment:OPEN/SHORT Zeroing (ALL,SPOT)Files:built-in 10 files and USB Disk 10 filesData Logger:9999 Log Files (.csv)Beep Feature:OFF/PASS/FAILInterface:RS232/RS485*/USB*/HANDLER/GPIB*(OPTION) (*RevE)Protocol:SCPI/Modbus *(*RevE)Other Functions:AUTO LCZPower Supply:AC 100V-240V, 50Hz-60Hz,20W MAXDimension & Weight:264(W)x107(H)x350(L), 3kg, net

• APPLICATIONS: Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
• The AT810A is the use of a high-performance processors and highlight color LCD screen smart LCR Meter. Since the SMD technology makes AT810A portability. We rely on highly skilled technical, so that the instrument even more outstanding performance.
• AT810A offers wide frequency range (10Hz~20kHz 0.001Hz Step), signal level (0.01V~2.00V,0.01V Step), auto range with 9 ranges, 30Ω or 100Ω constant output impedance and easy-to-use operation system.

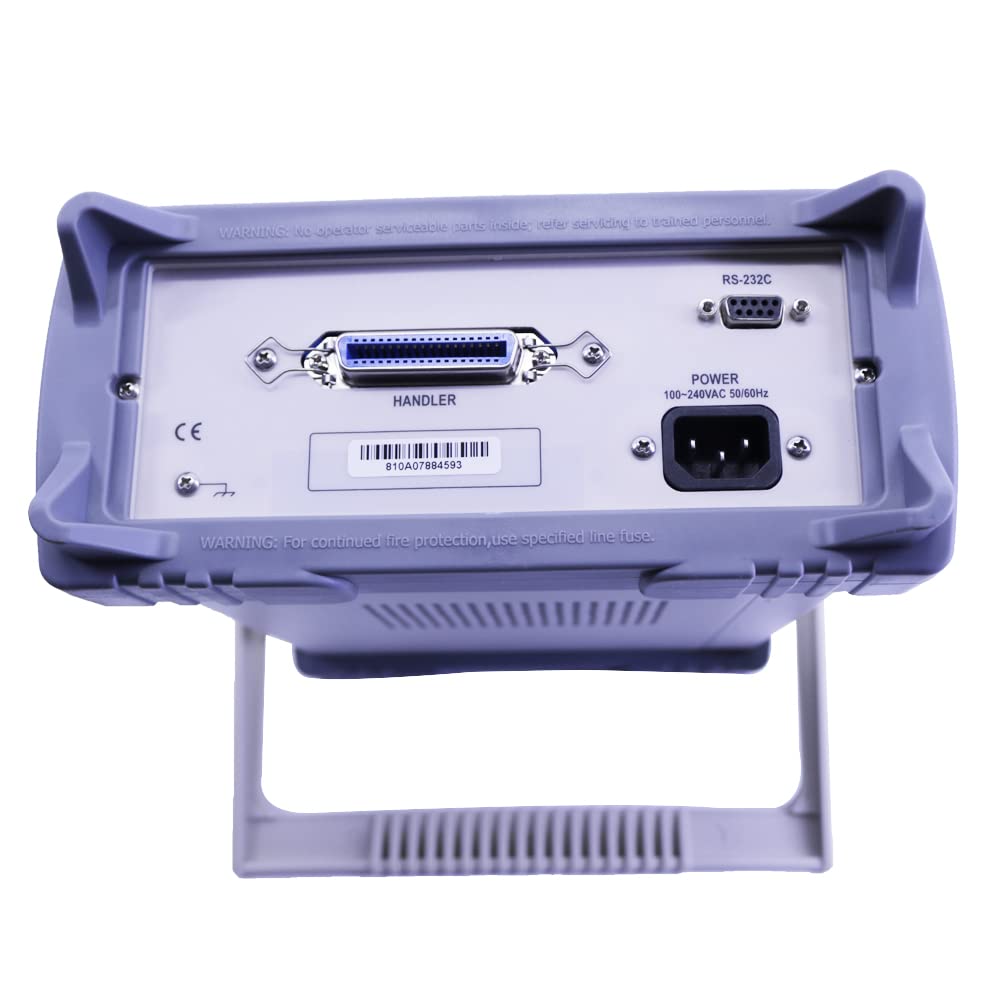

• Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.
• Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO;
